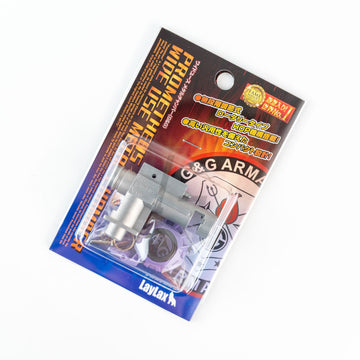

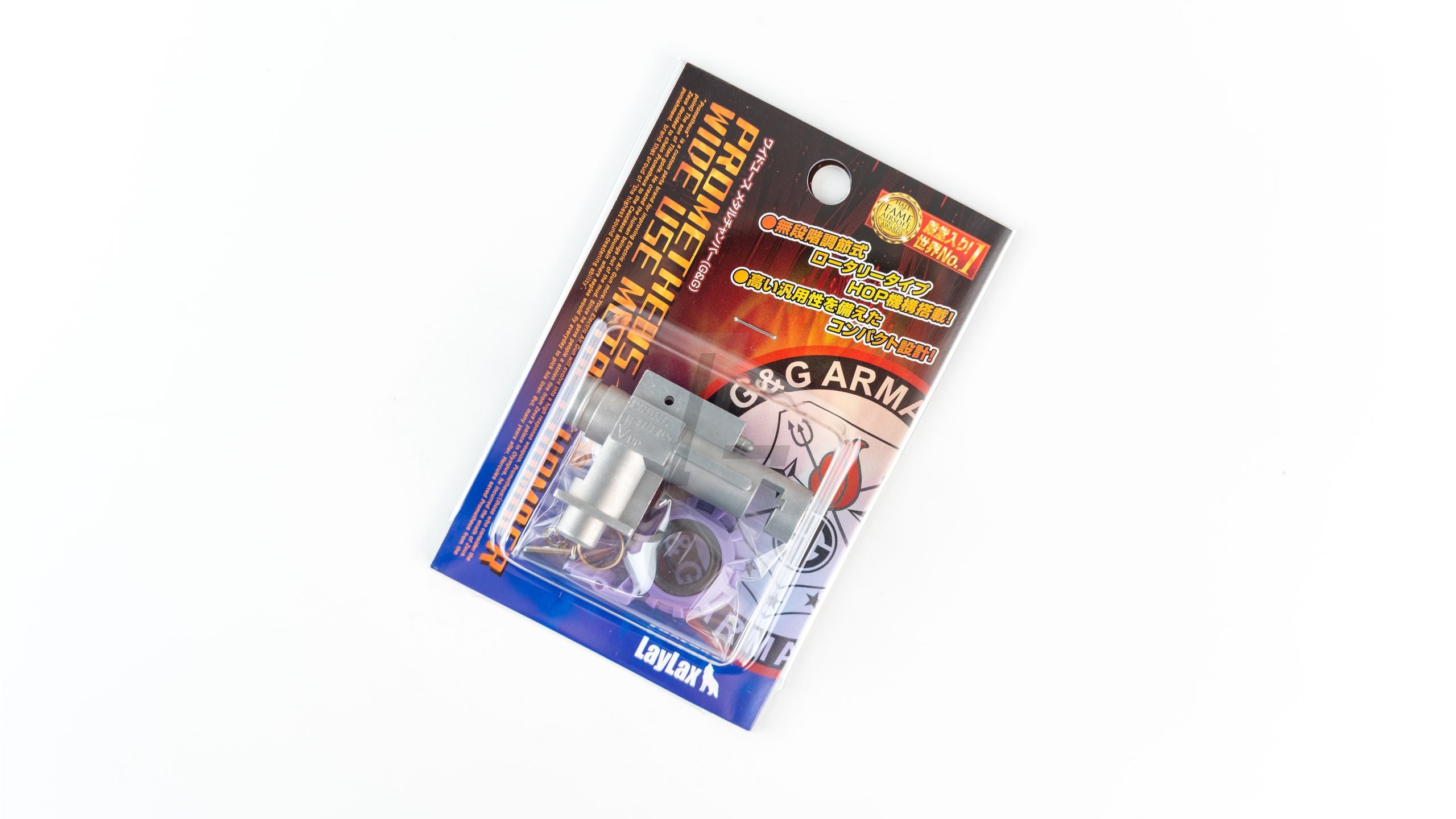

Prometheus Wide Use Metal Chamber

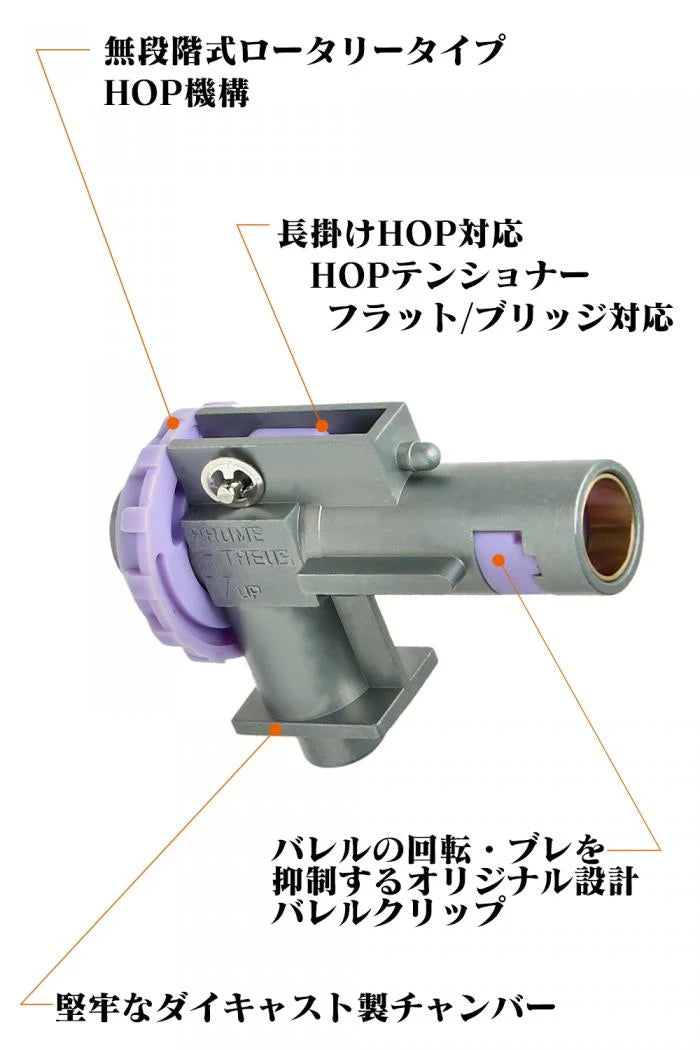

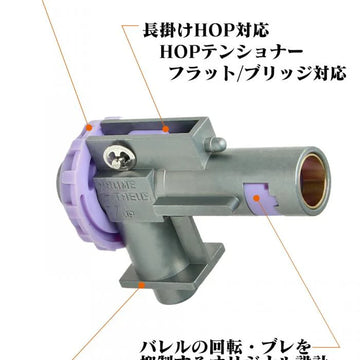

●Stepless rotary-type hop up chamber
●Compact and highly versatile

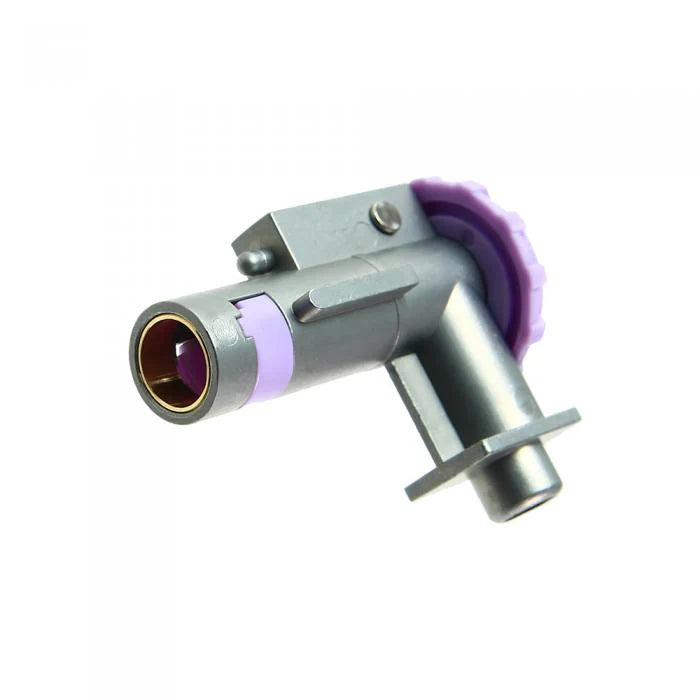

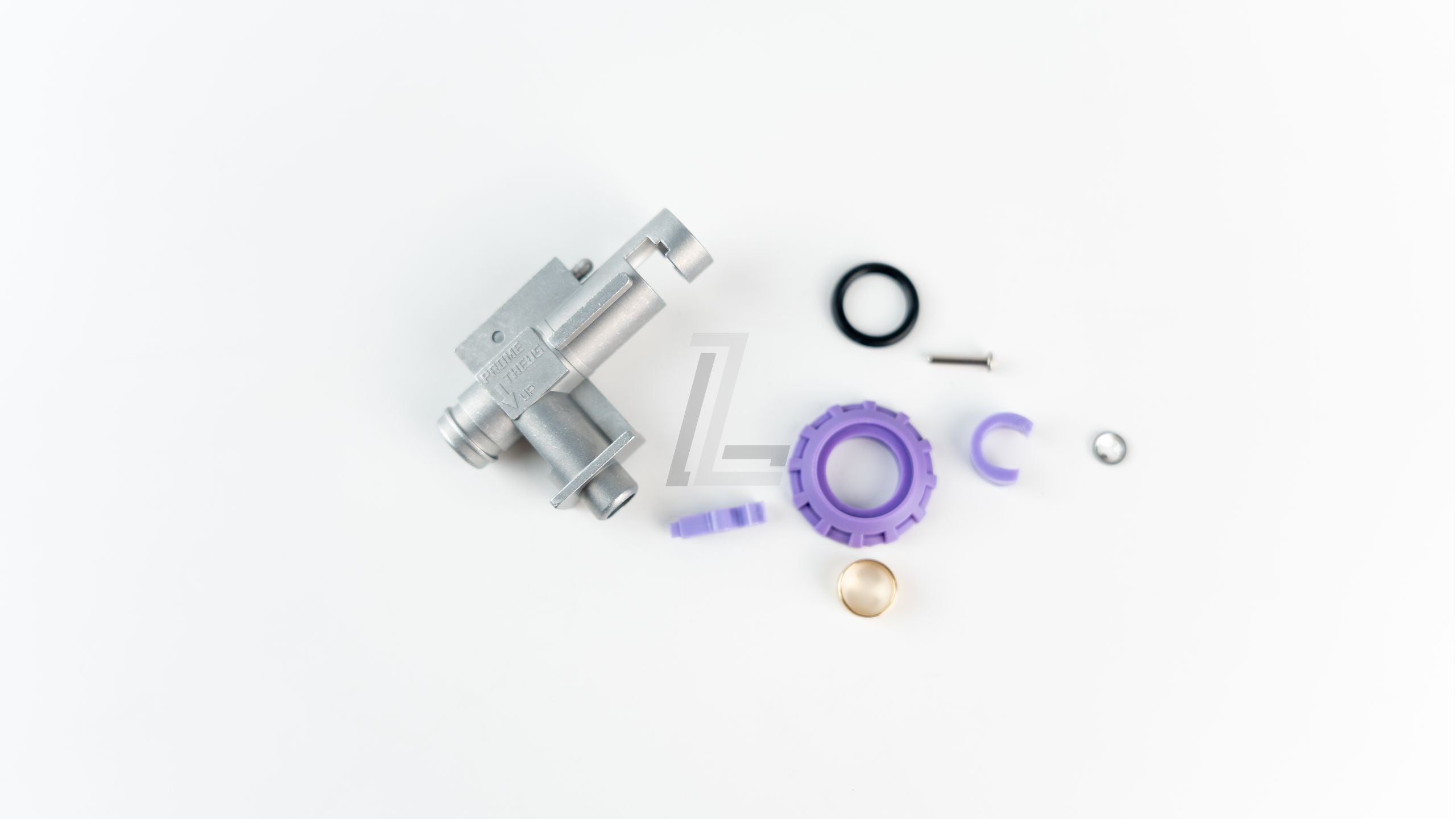

This rigid die-cast metal chamber is compatible with a wide range of M4 variant rifles. The rotary dial is stepless allowing for extremely precision hop adjustments to improve your accuracy. The included barrel clip fastens seamlessly to the chamber and barrel to prevent barrel wobble and rotation.
■COMPATIBILITY:
G&G ARMAMENT M4 Series
・ARP9
・ARP556
・CM16
・GC16
・Fire Hawk
・Fire Hawk HC05
KRYTAC M4 Series
・TRIDENT
・LVOA-C
・LVOA-S
・Barrett Rec 7
※Not compatible with the KRISS Vector、TRIDENT47 CRB(TR47)

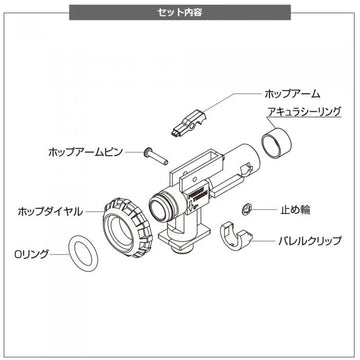

■INSTALLATION

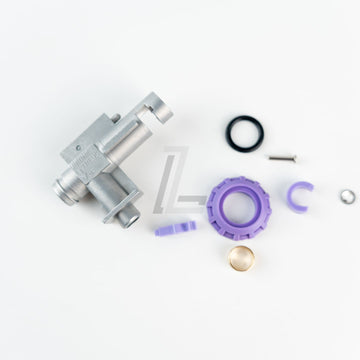

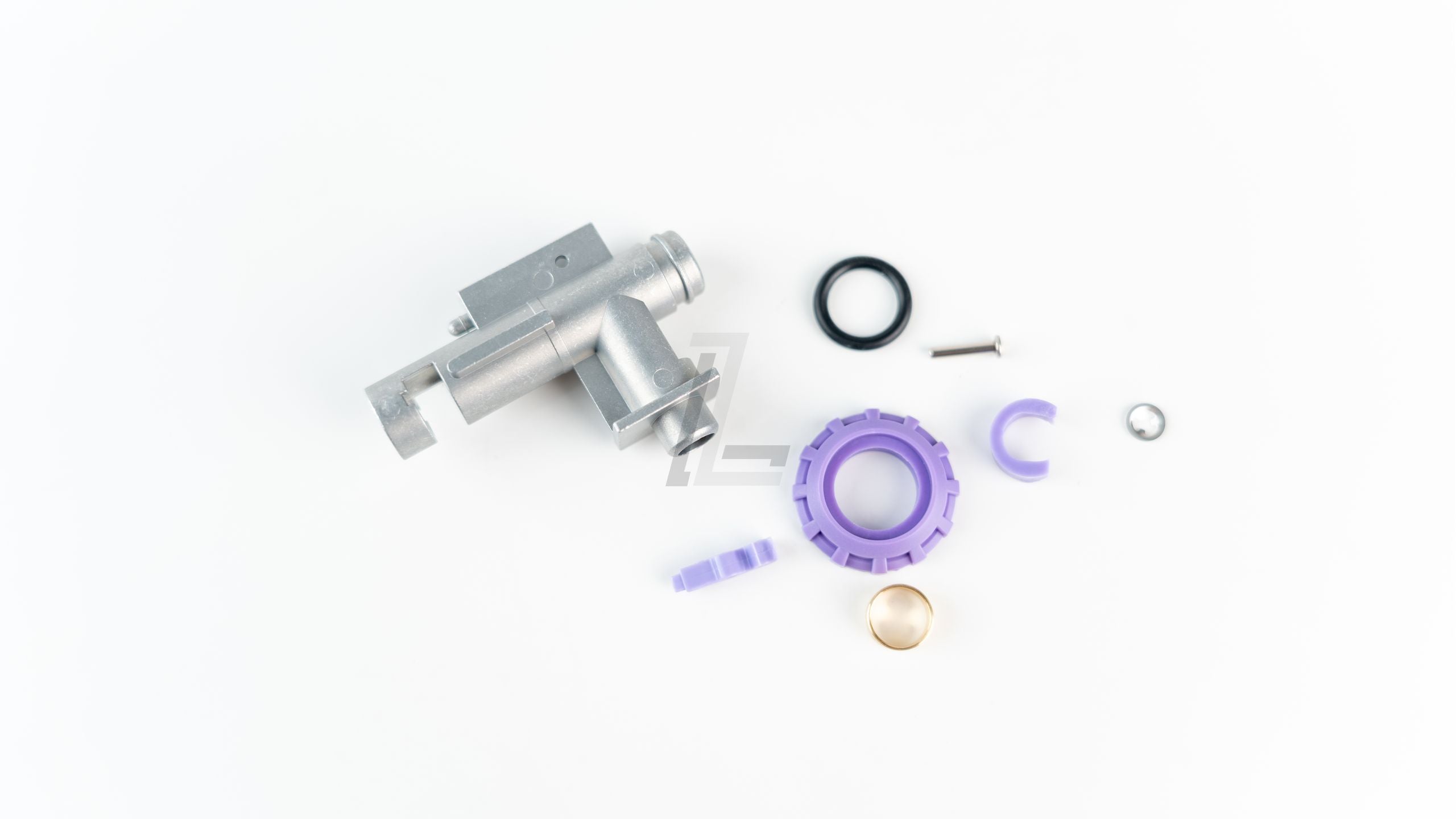

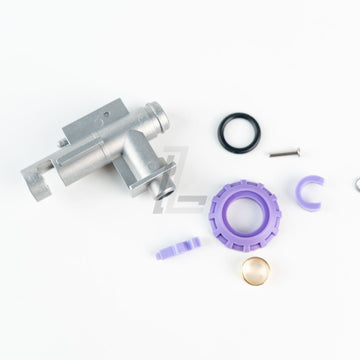

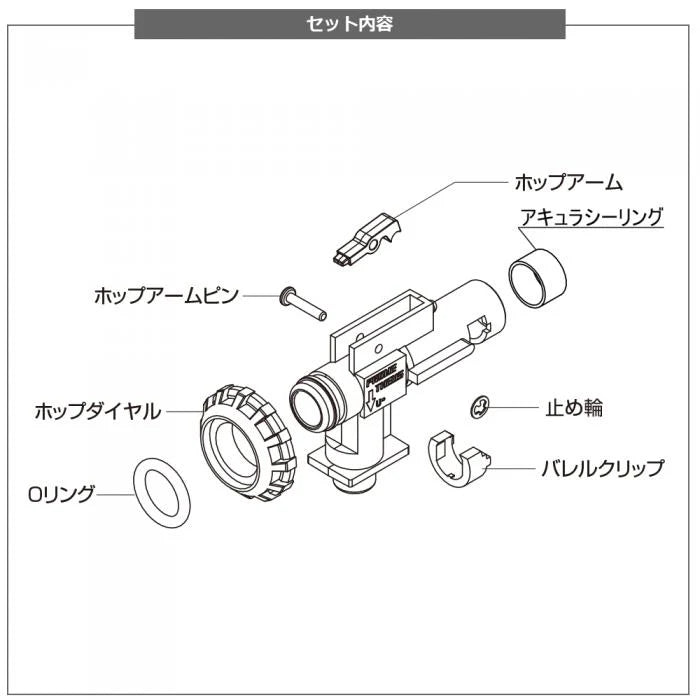

1. Attach the rotary dial to the back of the hop up chamber and attach the O-ring.
2. Place the bucking onto your barrel and insert the barrel into the opening of the chamber.
3. Attach the barrel clip and slide on the barrel ring. ※for KRYTACs, please use the original barrel spring instead of the barrel ring.
4. Insert the hop up nub or tensioner into the hop up window in the chamber.
5. Install the hop arm and secure it with the retaining pin.
■NOTICE:
・NOT compatible with Tokyo Marui guns without some modification.
・Hop up bucking, and nub/tensioner are NOT included.
・For best results, consider use the Prometheus bucking, nub/tensioner and inner barrels for the best fit.
・If double feeding or misfeeding occurs please check the fit of the magazine, receiver, and outer barrel when installing any hop up chamber as there might be some play when mixing parts.
・Be careful not to overtighten screws or bolts when installing your parts.
・The product is designed and refined to reduce play and wobble as much as possible be sure to secure all adjacent parts for maximum performance.
